Overview:

The Course Evaluations & Surveys D2L Brightspace Integration has two major setup steps, performed in the following order:

1. Brightspace Data Integration - NOTE: If your organization already has a Brightspace Data Integration configured and is only updating the User Integration from LTI 1.1 to LTI 1.3, then you do not need to set up the Data Integration again as those steps haven't changed.  Customers who are setting up the Brightspace integration for the first time will need to configure the Brightspace Data Integration and then return to the the steps in this article to configure the Brightspace User Integration.
2. Brightspace User Integration - follow the steps below after configuring the Brightspace Data Integration

Important Notes:

• This update to utilize LTI 1.3 only affects the Brightspace User Integration, while the setup steps for the Brightspace Data Integration remain unchanged.

• Updating the Brightspace User Integration to utilize LTI 1.3 is not required for the Brightspace Integration with CES. Customers can remain on the LTI 1.1 version of the integration and there is no change with integration functionality utilizing LTI 1.3.

• Customers will have the choice to utilize LTI 1.3 or LTI 1.1, however, it is recommended as best practice to update the Brightspace User Integration to utilize LTI 1.3.

• Customers will have the option to revert back to LTI 1.1 from LTI 1.3 if they choose.

Summary:

The Brightspace User Integration deploys External Tools to Brightspace, which provide dynamic LTI links in Brightspace and allow users direct access to CES with a single click. Currently the LTI links in Brightspace utilize LTI 1.1 technology.

LTI 1.3 offers added security and is a desired method at some institutions, which is why we developed the Brightspace User Integration to utilize LTI 1.3 technology.

A new Help Center article will be created titled “Brightspace User Integration Utilizing LTI 1.3”, while the existing “Brightspace User Integration” article will remain available for customers that choose to use LTI 1.1.

The below is the main difference between the two articles and will be added as the first step in the “Brightspace User Integration Utilizing LTI 1.3” article. The user experience will remain the same as mentioned in the LTI 1.1 article.

1)  How to register LTI 1.3 (LTI Advantage) tool in Brightspace:

1. Log into your Brightspace instance as a Brightspace Administrator.
2. Click on the Settings icon for Admin Tools and choose Manage Extensibility.
3. Choose the LTI Advantage tab and click on the Register Tool.
4. Choose the Standard option for registering your tool.
5. Enter the following information in the Register a Tool form:
   • Name: CES
   • Description: CES
   • Domain: your CES URL (i.e. https://myuniversity.evaluationkit.com)
   • Redirect URLs: your CES URL followed by /d2l/lti/callback (i.e. https://myuniversity.evaluationkit.com/d2l/lti/callback)
   • OpenId Connect Login URL: your CES URL followed by /d2l/lti/init (i.e. https://myuniversity.evaluationkit.com/d2l/lti/init)
   • Target Link URI: your CES URL followed by /d2l/lti/callback (i.e. https://myuniversity.evaluationkit.com/d2l/lti/callback)
   • Keyset URL: your CES URL, followed by /login/lti/jwks (i.e. )
   • Under Extensions, choose Deep Linking and Names and Role Provisioning Services.
   • Click Register. You will get the registration details.
   • Click Done, you will be redirected back to the list of registered LTI Advantage tools.

2) Deploy Newly Registered Tool in Brightspace

Next, create a Deployment for the new tool that was just created, either from the Creation screen or the Edit Tool screen by clicking on View deployments.

1. Click the New Deployment button.
2. Choose the LTI 1.3 Tool Registration that was created in the previous step in the Tool dropdown.
3. Choose a Name for your deployment.
4. Select the Deep Linking (optional) and Role Provisioning Services options from the list of Extensions.
5. Ensure the following settings are selected/configured:
   1. Org Unit Information
   2. User Information
      • Name
      • Email
      • User Id
      • Username
      • Org Defined ID
   3. Link Information
      • Title
      • Description
6. Ensure your Deployment is shared with the correct Org Units and their appropriate descendants.
7. Click the Create Deployment button.
8. Brightspace will now display a unique Deployment ID. Copy this value so it can be entered into CES in the following step. Note: This value can also be accessed by clicking on the new Deployment in the View Deployments screen.
9. Click View Links in D2L. A new tab will open.
10. Click New Link
11. Enter a Name for the link say “My Surveys Widget Link”.
12. Enter your institution's CES URL, followed by d2l/lti/init. For example: https://myuniversity.evaluationkit.com/d2l/lti/init
13. Select Type: Basic Launch
14. For custom parameters, add launch_type= widget (This is required if clients want to use a widget.)
15. Click Save & Close
16. Return to your other D2L tab and click Done.

3) Configure LTI 1.3 Settings in CES

1. Log into CES as the CES Administrator
2. Navigate to Account > Brightspace > User Settings.
3. Copy the value from the Client ID field in Brightspace into the Client ID field in CES
4. Paste the Deployment ID from the previous step into the Deployment ID field in CES
5. Copy the value from the Issuer field in Brightspace into the Issuer field in CES
6. Copy the value from the Brightspace Keyset URL field in Brightspace into the Brightspace Keyset URL field in CES.
7. Copy the value from the OpenID Connect Authentication Endpoint field in Brightspace into the OpenID Connect Authentication Endpoint field in CES.
8. Click Save.

4) In Brightspace, go to Admin Tools > Navigation & Themes > Custom Links Tab > Create Link.

Insert the following information for the corresponding fields:

1. Name: My Surveys Widget LTI 1.3 link
2. Custom Link Url: Click Insert Quicklink > Course Material List Survey Notification: > Select External Learning Tool > Select My Surveys Widget Link that was added previously (in step 2.11).


   At this point the system will auto-generate a URL link to the External Learning Tool and pre-populate the URL field for you. Please copy this custom link and save it, as you will need to paste it into the 'INSERT YOUR CUSTOM LINK HERE' when adding a widget.

3. Behavior: New window/tab
4. Width: 1000
5. Height: 700
6. Browser Attributes: Check All

5) In Brightspace, go to Admin Tools > Homepage Management > Widgets Tab > Create Widget

1. Name the Widget: My Surveys (or customize as you wish).
2. Leave the description blank.
3. Un-check the option for Render in IFrame
4. Make widget available to: Select Top Level Org > All descendants.
5. Select Content tab in Subnavigation.

   1. Copy the below code snippet into Notepad or Text Edit.

      <<div>
        <script>
          try {
            /* REPLACE THIS
            SETTING BELOW */
            /* example: '/d21/common/dialogs/quickLink/quickLink.d21?ou={orgUnitId}
            &type=lti&rcode...'*/
            var evalkit_customlink = 'INSERT YOUR CUSTOM LINK HERE';
            var evalkit_domain = ' INSERT YOUR INSTITUTION URL example : myuniversity.evaluationkit.com';
          }
          catch (e) {
            console.log(e);
          }
        </script>
        <script
          src=" INSERT YOUR INSTITUTION URL example : //myuniversity.evaluationkit.com/js/d2l/evalkit.d2ldashboardMASTER.js"
          type="text/javascript"></script>
        <div id="evalkit_dashboard"></div>
      </div>

   2. Paste the URL generated in the above step (4.c) where it says 'INSERT YOUR CUSTOM LINK HERE'.
   3. Paste your CES URL where it says "INSERT YOUR INSTITUTION URL."  For example, myuniversity.evaluationkit.com
   4. Copy all of the code snippet from Notepad or Text Edit.
   5. Click the Source Code button (</>) on the bottom of the editor and paste the code snippet below in the Source Code window and click Save.
   6. Click Save and Close Button.

6) In Brightspace, go to Admin Tools > Homepage Management

1. Select Desired Homepage.
2. Click Add Widget from Widgets.
3. Select the above created widget “My Surveys”(step 5.1) from the list.
4. Click Add.
5. Click Save and Close.
6. Repeat these steps for other homepages where the My Surveys Widget should display.
7. The My Surveys Widget is now configured and set up to display on your homepages.

Optional Feature: Add a Global LTI Link to the Brightspace Top Navigation to Take Users from Brightspace to Course Evaluations & Surveys

1) In Brightspace, go to Admin Tools > External Learning Tools > Select your deployed tool

1. Click View Links in D2L. A new tab will open.
2. Click New Link
3. Enter a Name for the link say “My Surveys link” (this is the name that will be used to add the link in the Navigation bar).
4. Enter your institution's CES URL, followed by d2l/lti/init. i.e: https://myuniversity.evaluationkit.com/d2l/lti/init.
5. Select Type: Basic Launch
6. Click Save & Close

2) In Brightspace, go to Admin Tools > Navigation & Themes > Custom Links Tab > Create Link.

1. Insert the following information for the corresponding fields:
   1. Name: My Surveys LTI 1.3 link
   2. Custom Link Url: Click Insert Quicklink > Course Material List Survey Notification: > Select External Learning Tool > Select My Surveys Link that was added in previous step (in step 1.3).
   3. Behavior: New window/tab
   4. Width: 1000
   5. Height: 700
   6. Browser Attributes: Check All

3) Go to Admin Tools > Navigation & Themes > Navbars > Select Desired Navigation Bar.

1. Click Add Links
2. Select My Surveys LTI 1.3 Link from the list
3. Click Add, Click Save and Close.

LMS User Experience in D2L (Brightspace)

This document describes how Course Evaluations & Surveys (CES) features appear to Students and Instructors within the D2L (Brightspace) L after the integration has been configured.

The integration allows users to easily access course evaluations directly from their LMS course environment.

Student Experience

Students will receive notifications and the Survey widget link within their course environment when a CES survey becomes available.

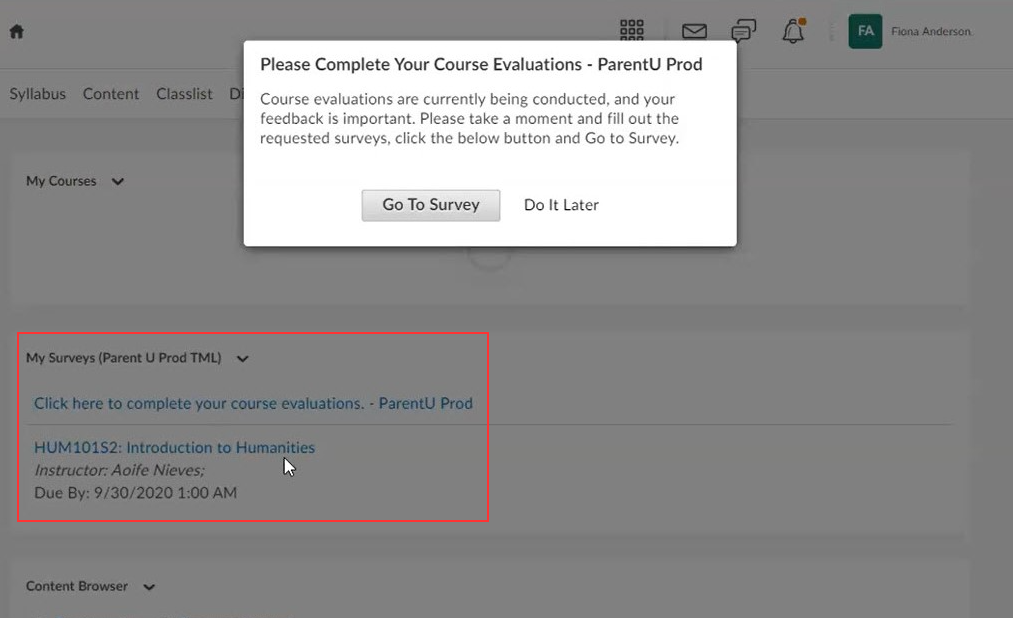

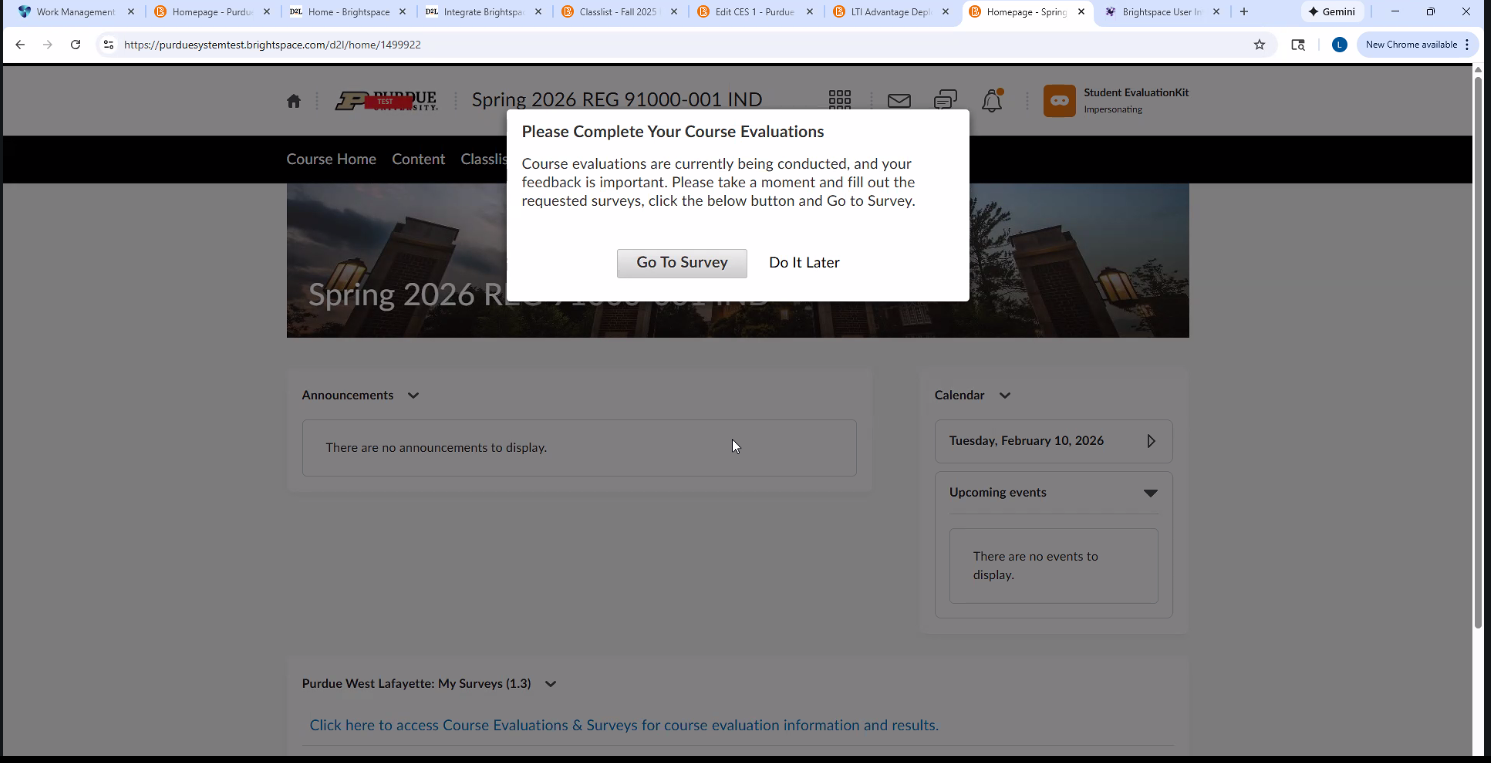

1. Survey Notifications (Course Access)

Students will receive a survey notification when they access a course that has an active CES survey.

The notification alerts students that a course evaluation survey is available and provides a prompt to access the survey.

These notifications appear when:

• A survey becomes available for the course
• A student enters the course where the survey widget is added in Homepage

2. Survey Navigation Link

Students will see a Widget Link to Course Evaluations & Surveys with their course Dashboard.

Note: If the student has been enrolled in a course in a Deployed Project the My Surveys Widget will appear along with a link to the active survey(s). If the student does not have an active survey the student will see “There are no active surveys at this time.” in the My Surveys Widget

-  This link allows students to:

• Access the CES survey directly
• Launch the evaluation associated with the course
• Complete their course evaluation

The navigation link appears only in courses where CES surveys are available or deployed.

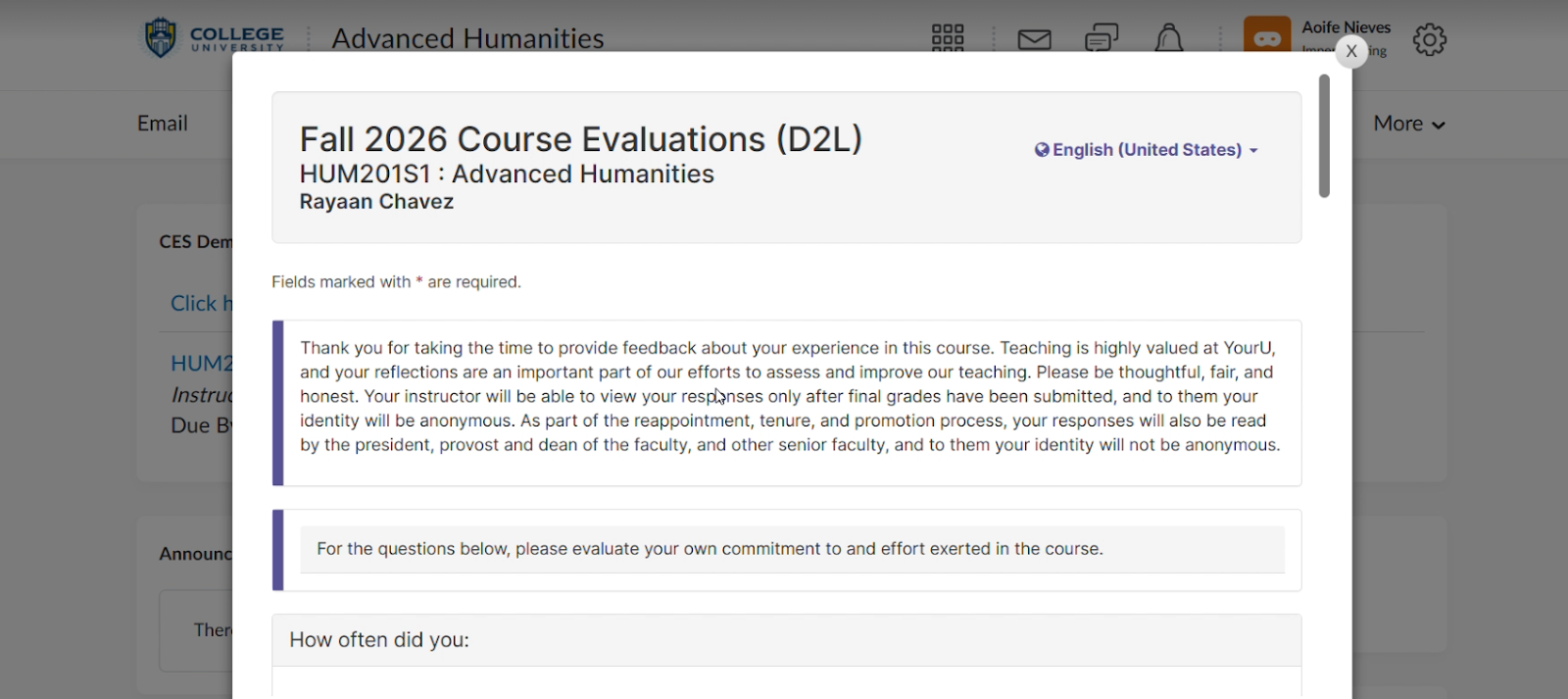

3.  Accessing and Completing the Survey

When students select the CES link, they will be directed to the CES survey interface.

-  From this interface, students can:

• Start the evaluation
• Submit feedback for the course
• Complete the survey anonymously (depending on institutional configuration)

Once submitted, the survey will be recorded in the CES system.

Instructor Experience

Instructors have access to CES through their course environment but do not receive survey completion notifications intended for students.

1. Course Navigation Link

Instructors will see the CES link within the course dashboard

• This link allows instructors to access the CES platform from within their course.

However, instructors will not receive survey notifications, as these notifications are intended only for students completing evaluations.

2. Access to Evaluation Results

Instructor access to evaluation results depends on institutional configuration and release settings.

Typically, instructors may:

• Access evaluation results after surveys close
• Review course evaluation feedback
• View aggregated student responses

Evaluation results are made available only after the evaluation period has ended and results have been released by the institution.

Summary of User Experience
