Moodle LTI 1.3 Administrator Setup


In this article, we will take a look at the Administrator Setup

Please Refer to the below article for frequently asked questions regarding the migration from LTI 1.1 to LTI 1.3: LTI 1.1 to LTI 1.3 migration FAQ's

1. Log into your Moodle administrator account

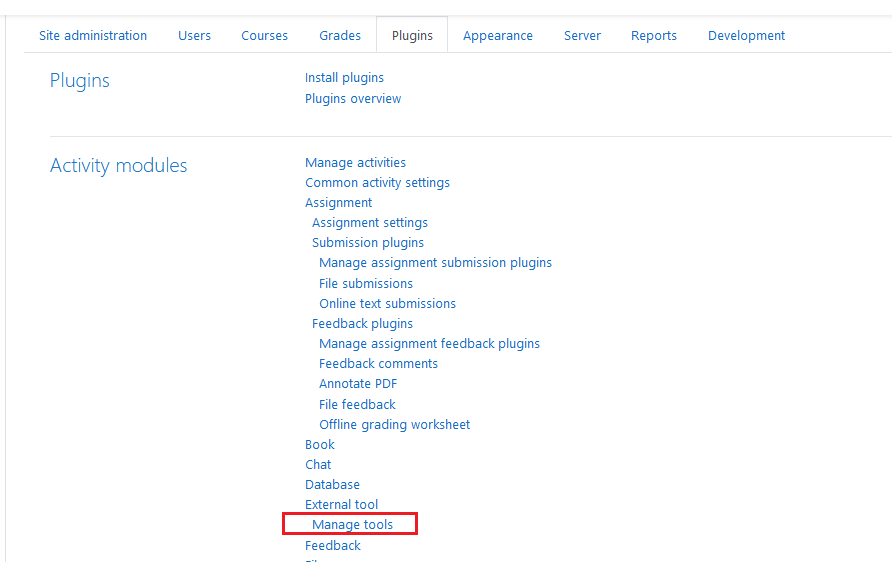

2. Go to Site Administration and click Plugins > Activity Modules > External tool > Manage tools

3. Click configure a tool manually

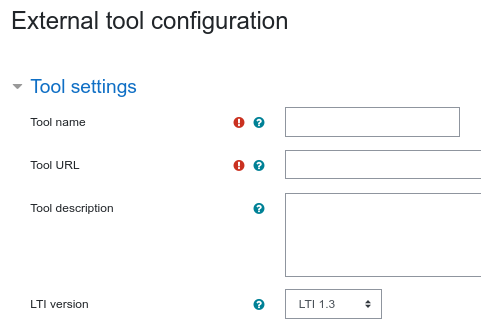

4. Enter a Tool name

5. Enter the Tool URL: < Server URL for which integrations need to be created>

6. Choose LTI version: LTI 1.3


7. Select Public key type as Keyset URL.

8. Copy the Public Keyset URL from TK20 and paste it into the Public keyset box in Moodle

9. Copy the Initiate Login URL from TK20 and paste it into the Initiate login URL box in Moodle

10. Copy the Redirection URL from TK20 and paste it into the Redirection URI(s) box in Moodle

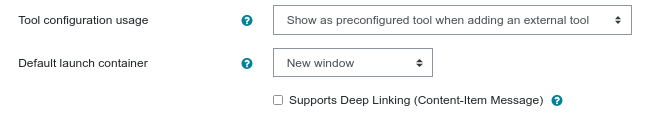

11. For Tool Configuration Usage, select Show as preconfigured tool when adding an external tool

12. Change Default launch container to New window

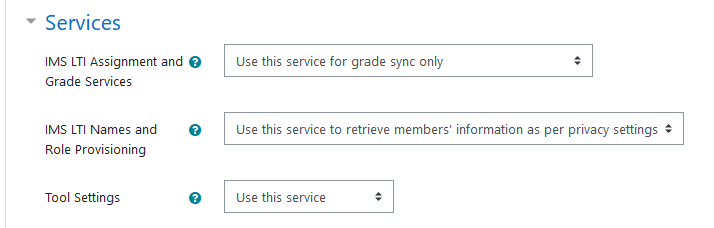

13. For IMS LTI Assignment and Grade Services, select Use this service for grade sync.

14. For IMS LTI Names and Role Provisioning, select Use this service to retrieve members' information as per privacy settings

15. For Tool Settings, select Use this service

16. Select Always for Share launcher's name with tool

17. Select Always for Share launcher's email with tool

18. Select Always for Accept grades from the tool

19. Click Save changes

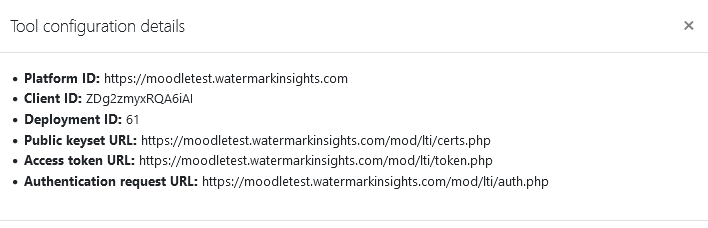

20. Click the View configuration details button for the TK20 tool

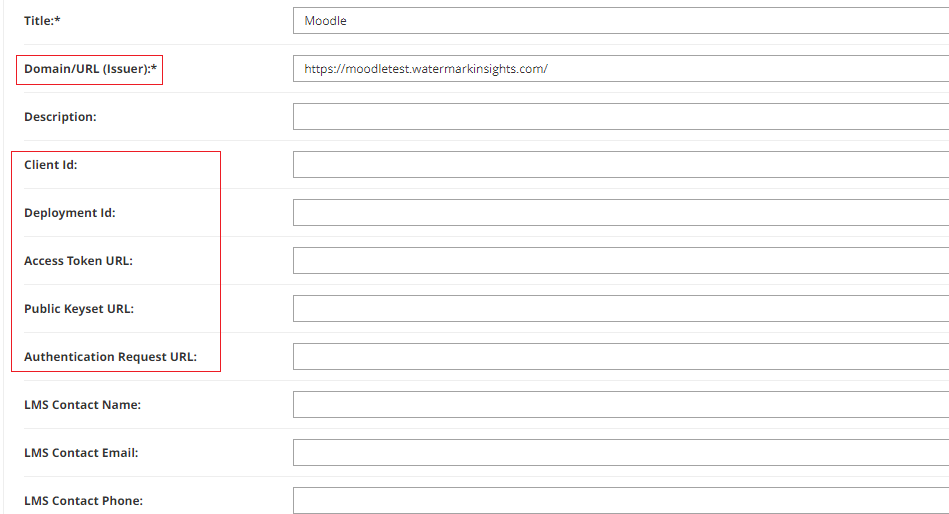

21. Copy the Deployment ID and paste it into the Deployment ID box in TK20

22. Copy the Public keyset URL and paste it into TK20

23. Copy the Access token URL and paste it into TK20

24. Copy the Authentication request URL and paste it into TK20

25. Copy the Client ID and paste it into TK20

26. Copy the Platform ID and paste it into the Issuer box in TK20

*Please make sure there are no trailing spaces or special characters (such as a "/") at the end of the Issuer URL
